Propellant Management Device (PMD) tanks

Propellant Management Device (PMD) tanks

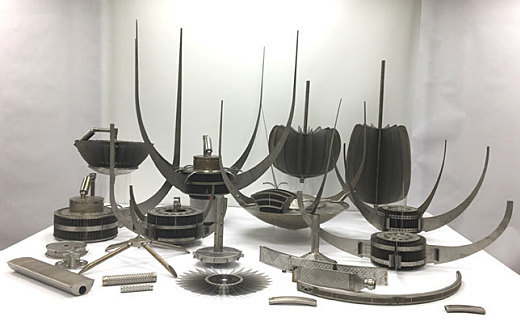

Propellant Management Device (PMD) tanks are used in mono- and bi-propellant systems for the control of fluid and separation of the pressurant gas from the fuel or oxidizer to provide gas-free propellant to the thrusters through the spacecraft life. Northrop Grumman presently manufactures PMD tanks with over 100,000 cubic inches of volume with numerous PMD designs for specific mission applications. We have fabricated PMDs for manned and unmanned space missions traveling in low-Earth and geosynchronous orbits as well as deep space. Our versatile propellant management solutions enable complex multi-task missions. The all-titanium PMD tanks assure long-term propellant compatibility throughout mission life. We have delivered more than 1,200 PMD tank assemblies.
PMD Tanks by VolumePMD Tanks by Part NumberContact: Joel.Gross@ngc.com
40" dia PMD Tank, P/N 80466

40" dia PMD Tank, P/N 80466

35" dia x 109" Long PMD Tank, P/N 80391

35" dia x 109" Long PMD Tank, P/N 80391

5" dia x 29" Long PMD Tank, P/N 80421

5" dia x 29" Long PMD Tank, P/N 80421

22" dia x 32" Long PMD Tank, P/N 80420

22" dia x 32" Long PMD Tank, P/N 80420

PMD Tanks Data Sheets – Sorted by Volume

OA’s P/N Total Volume (in³) Total Volume (l) Diameter (in) Diameter (mm) Weight (lbm) Weight (kg) Operating Pressure (psig) Operating Pressure (bar) Propellant Volume / Capacity (lbm or in3) Program Note
80568-1 232 3.8 5
OD x 13.9 boss-to-boss
(ICD for 80568)		 127 mm OD x 353 mm boss-to-boss 3 1.36 348 24 Unknown LMP-103
HPGP
80421-1 522 8.55 5.0
Diameter x 29 long
(ICD
for 80421)		 126
mm diameter x 717 mm long		 4.25 1.93 400 27.6 522
in3		 SBD/TOMS 80421
Qualified Environments
80213-1 1,232 20.2 13.33
ID
(ICD
for 80213)		 339
mm ID		 4 1.8 310 21.4 — CLASSIFIED C
80213
Qualified Environments
80481-1 1,232 20.2 13.33
ID
(ICD
for 80481)		 339
mm ID		 4 1.8 300 20.7 — CLASSIFIED 80481
Protoflight Environments
80454-1 2,280 37.4 16.5
ID
(ICD
for 80454) 		419
mm ID		 11.4 5.2 300 20.7 1,520
in3		 Orbital
Express		 Fuel
80304-1 3,575 58.6 19.03
ID
(ICD
for 80304)		 483
mm ID		 7.75 3.5 400 27.6 2,349
in3		 SPACENET C
80296-1 3,575 58.6 19.03
ID
(ICD
for 80296)		 483
mm ID		 8.0 3.6 425 29.3 — RCA
Sat COM
80353-1 3,575 58.6 19.03
ID
(ICD
for 80353)		 483
mm ID		 8.5 3.9 400 27.6 3,575
in3		 MARS
OBSERVER		 C
80480-1 3,575 58.6 19.03
ID
(ICD
for 80480)		 483
mm ID		 7.9 3.6 300 20.7 2,349
in3		 CLASSIFIED 80480
Protoflight Environments
80379-1 3,660 60 19.06
ID
(ICD
for 80379)		 484
mm ID		 10.7 4.9 377 26 3,660
in3		 NEAR M
80396-1 3,776 61.9 19.32
ID
(ICD
for 80396)		 488
mm ID		 11.5 5.2 600 41.4 VARIABLE LUNAR
PROSPECTOR
80364-1 5,580 91.5 22.14
ID
(ICD
for 80364)		 562
mm ID		 12.5 5.7 400 27.6 150
lbm		 INMARSAT
3		 C
80599 5,774 94.6 22.14
ID Sphere
(ICD
for 80599)		 562
mm ID		 14.6 6.6 320 22 CLASSIFIED C
80387
Qualified Environments
80387-1 7,700 126.2 22.14
ID x 29.47 Long
(ICD
for 80387)		 562
mm ID x 749 mm long		 20 9.3 400 27.6 220
lbm		 CLASSIFIED C
80387
Qualified Environments
80309-1 9,210 151 22.14
ID x 32 Long
(ICD
for 80309)		 562
mm ID x 813 mm long		 17.8 8.1 318 21.9 NOTE
G		 CLASSIFIED C,
G
80420-1 9,210 151 22.14
ID x 32 Long
(ICD
for 80420)		 562
mm ID x 813 mm long		 17.8 8.1 318 21.9 NOTE
G		 BSAT C,
G
80420
Protoflight Environments
80426-1 9,712 159.2 21.25
OD x 34.69 long
(ICD
for 80426)		 541
mm OD x 881 mm long		 20 9.1 315 21.7 492
lbm		 STAR
2		 Ox
Tank
80426
Protoflight Environments
80375-1 9,850 161.5 24.6
ID x 29 Long
(ICD
for 80375)		 625
mm ID x 737 mm long		 19.0 8.6 420 29 253
lbm		 IRIDIUM 80375
Qualified Environments
80462-1 9,850 161.5 24.6
ID x 29 Long
(ICD
for 80462)		 625
mm ID x 737 mm long		 22.0 10.0 420 29 253
lbm		 NFIRE 80462
Protoflight Environments
80334-1 10,679 175.1 23.862
in OD x 33.312 in shoulder-to-shoulder
(ICD
for 80334)		 606
mm OD x 846 mm shoulder-to-shoulder		 28.41 12.9 255 17.6 9,274
in3		 INMARSAT
2		 C
80334
Qualified Environments
80433-1 12,150 199.2 22.14
ID x 39.2 Long
(ICD
for 80433)		 562
mm ID x 994 mm long		 20.00 9.1 325 22.4 95%
max. fill fraction		 MESSENGER 80433
Qualified Environments80433
Protoflight Environments
80310-5 13,743 225.3 23
ID x 40 Long
(ICD
for 80310)		 584
mm ID x 1016 mm long		 33.95 15.4 255 17.6 682
lbm		 EUROSTAR C
80474-1 13,750 225.4 29.8
ID
(ICD
for 80474)		 757
mm ID		 18.6 8.4 250 17.2 98%
Fill Fraction		 MiTex 80474
Qualified Environments
80491-1 13,937 228 21.5 DIA x 48 Long 546.1 mm DIA x 1219.1 mm Long 300 20.7 A2100 Extended Range
80394-1 13,979 229.2 21.25
OD x 47.8 Long
(ICD
for 80394)		 540
mm OD x 1214 mm long		 25.7 11.7 300 20.7 13,979 in3 A2100
Ox Family
80406-1 13,979 229.2 21.25
OD x 47.8 Long
(ICD
for 80406)		 540
mm OD x 1214 mm long		 25.7 11.7 300 20.7 13,979 in3 A2100
Ox Family		 N,
C
80339-1 15,598 255.7 31.06
ID
(ICD
for 80339)		 789
mm ID		 30.1 13.7 300 20.7 549
lbm		 S-5000 C
80612-1 16,830 275.80 21.25″ ID X 56.43″ Long 540 x 1433mm 37.50 lbs 17.01 kg 300 20.68 16,476 in3
80324-1 18,390 301.5 32.84
ID
(ICD
for 80324)		 834
mm ID		 44.5 20.2 400 27.6 587
lbm		 MILSTAR 80324
Qualified Environments
80277-1 18,450 302.5 32.84
ID
(ICD
for 80277)		 834
mm ID		 32.6 14.8 250 17.2 894
lbm NTO		 INSAT C
80561-1 19,000 311 21.25 ID x
65.03 flex plate-to-flex plate
(ICD
for 80561)		 540 mm ID x 1652 mm flex plate-to-flex
plate		 35 15.88 300 20.7 GOES Ox
80529-1 19,984 327.48 21.25 ID x
65.03 flex plate-to-flex plate
(ICD
for 80529)		 540 mm ID x 1652 mm flex plate-to-flex
plate		 33.50 15.20 300 20.7 GPS Ox
80504-1 19,984 327.48 21.25 ID x 65.03 Long 540 x 1652 mm 33.5 15.2 300 20.68 19,984
in3		 BSAT-3A Derivative of 80405
80390-1 19,984 327.6 21.25
OD x 65.03 Long
(ICD
for 80390)		 540
mm OD x 1652 mm long		 33.5 15.2 300 20.7 19,984 in3 A2100
Ox Family		 N,
C
80390
Qualified Environments
80405-1 19,984 327.6 21.25
OD x 65.03 Long
(ICD
for 80405)		 540
mm OD x 1652 mm long		 33.5 15.2 300 20.7 19,984 in3 A2100
Ox Family		 N,
C
80511-1 19,992 327.7 40.7
ID ellipsoid
(ICD
for 80511)		 1030
mm ID		 55.0 24.9 330 22.8 552 lbm hydrazine Proprietary 80511
Qualified Environments
80373-1 20,580 337.4 34
ID
(ICD
for 80373)		 864
mm ID		 30.5 13.8 300 20.7 20,579
in3		 S7000 C
80373
Qualified Environments
80301-1 20,900 342.6 34.25
ID
(ICD
for 80301)		 870
mm ID		 34 15.4 255 17.6 1,129
lbm		 ARABSAT C
80350-1 22,450 368 35.1
ID
(ICD
for 80350)		 892
mm ID		 28.9 13.1 260 17.9 22,450
cu. in.		 HS
– 601		 80350
Qualified Environments
80415-1 22,450 368 35.1
ID
(ICD
for 80415)		 892
mm ID		 28.9 13.1 260 17.9 22,450
cu. in.		 HS
– 601 HP
80589-1 22,850 374.4 29.83 DIA x 43.713 long 757.7 mm DIA x1110.3 mm long 62 28.1 315 21.7
80527-1 22,850 374.6 29.5
ID x 43.7 Long
(ICD
for 80527)		 749
mm ID x 1110 mm long		 62.0 28.1 315 21.7 qualified
to
15,835 in3		 COTS/CRS
80317-105 23,400 383.6 27.68
ID x 48 Long
(ICD
for 80317)		 703
mm ID x 1219 mm long		 60 27.2 350 24.1 VARIABLE CLASSIFIED C
80435-1 26,345 431.9 21.3″
OD X 83.2″ Long
(ICD
for 80435)		 541
mm OD x 2080 mm long		 64.7 29.3 300 20.7 26,345
in3		 ASTROLINK ox
80577-1 26,750 438.4 28.55 DIA x54.915 long 725.17 mm DIA x1394.841 mm long 50 22.7 340 23.4 Upgrade
of 80398
80356-1 26,750 438.5 28
ID x 48.5 Long
(ICD
for 80356)		 711
mm ID x 1232 mm long		 60 27.2 325 22.4 26,700
in3		 CLASSIFIED
80398-1 26,750 438.5 28.5
ID x 54.99 Long
(ICD
for 80398)		 597
mm ID x 1394 mm long		 50 22.7 350 24.1 26,750
in3		 SPS-95,
SPS-200		 80398
Qualified Environments
80495-1 28,475 466.63 42.11 OD x 83.98 Long 1069.59 mm x 2133.09 mm 260 117.94 315 21.718
80340-1 30,728 503.8 38.97
ID
(ICD
for 80340)		 990
mm ID		 37.75 17.1 276 19 1,495
lbm		 S-5000 C
80399-1 32,610 534.6 35.1
ID x 46.42 boss-to-boss
(ICD
for 80399)		 892
mm ID x 1179 mm long		 41 18.6 260 17.9 1,160
lbm		 HS
– 601 HP		 80399
Qualified Environments
80430-1 34,481 565.3 40.44
ID
(ICD
for 80430)		 1027
mm ID		 48 21.8 330 22.8 34,481
in3		 UNKNOWN Fuel
80430
Qualified Environments
80466-1 34,481 565.3 40.44
ID
(ICD
for 80466)		 1030
mm ID		 48 21.8 330 22.8 34,481
in3		 GLAST Fuel
80338-1 34,500 565.6 40.44
ID
(ICD
for 80338)		 1027
mm ID		 56 25.4 250 17.2 1,710
lbs.		 GOES C
80352-1 39,440 646.6 42
ID
(ICD
for 80352)		 1067
mm ID		 51.5 23.4 300 20.7 39,230
in3		 MO,
TELSTAR,
S7000		 C
80484-1 39,440 646.6 42
ID
(ICD
for 80484)		 1067
mm ID		 51.5 23.4 300 20.7 39,230
in3		 SDO 80484
Protoflight Environments
80507-1 41,093 673.7 45.6
ID x 37 long
(ICD
for 80507)		 1158
mm ID		 66.82 30.31 260 17.9 41,093
in3		 Commercial Ox
tank
80507
Qualified Environments
SP 2016_3124654
80570-5 41,163 674.54 46.321
OD @ tab ring
x modular tank lengths
(ICD
for 80570)		 1177
mm OD @ tab ring x modular tank lengths		 74.96 34.0 300 20.68
80564-1 43,576 714.4 50.55 OD x 37.7
boss-to-boss
(ICD
for 80564)		 1284 mm OD x 958 mm boss-to-boss 91.0 41.3 300 20.7 2218.5 lbm ComSat Ox
Tank
80470-1 45,161 740.4 40.5
ID x 48.8 Long
(ICD
for 80470)		 1029
mm ID x 1240 mm long		 60.0 27.2 340 23.4 45,161
in3		 UNKNOWN Hydrazine
80470
Qualified Environments
80507-2 50,756 832.1 45.6
ID x 43 long
(ICD
for 80507)		 1158
mm ID x 1092 mm long		 76.75 34.81 260 17.9 50,756
in3		 Commercial Ox
tank
80507
Qualified Environments
SP 2016_3124654
80432-1 52,335 858 35.5
OD x 69.2 Long
(ICD
for 80432)		 902
mm OD x 1758 mm long		 67.73 30.7 300 20.7 52,335
in3		 STAR-2 Fuel
Derivative of P/N 80425
80476-1 52,335 858 35.5
OD x 70.23 flex plate-to-flex plate
(ICD
for 80476)		 902
mm ID x 1784 mm flex plate-to-flex plate		 63.75 28.9 300 20.7 52,335
in3		 OPTUS
80518-1 52,335 858 35.5
OD x 69.2 Long
(ICD
for 80518)		 902
mm OD x 1758 mm long		 67.73 30.7 300 20.7 52,335
in3		 STAR-2 Fuel
80571-1 55,662 912 46.321 OD
(ICD for 80571)		 1177 mm OD @ tab ring x modular tank
lengths		 80.47 36.5 285 19.65 Proprietary
80532-1 57,215 937.6 (ICD
for 80532)		 43.3 19.7 JUNO Fuel
80425-1 57,215 938 35.5
OD x 75″ Long
(ICD
for 80425)		 902
mm OD x 1905 mm long		 67.73 30.7 300 20.7 1,980
lbm		 STAR-2 Fuel
80425
Qualified Environments
80425-101 57,215 938 35.5
OD x 75″ Long
(ICD
for 80425)		 902
mm OD x 1905 mm long		 73.0 33.1 300 20.7 1,980
lbm		 STAR-2 80425
Qualified Environments
80507-3 60,420 990.5 45.6
ID x 49 long
(ICD
for 80507)		 1158
mm ID x 1245 mm long		 83.92 38.07 260 17.9 60,420
in3		 Commercial Ox
tank
80507
Qualified Environments
SP 2016_3124654
80366-1 61,028 1000.5 48.9
ID
(ICD
for 80366) 		1242
mm ID		 73.2 33.2 250 17.2 61,028
in3		 N-STAR C
80380-1 61,028 1000.5 48.9
ID
(ICD
for 80380)		 1242
mm ID		 70 31.8 250 17.2 61,028
in3		 TEMPO
80440-1 61,028 1000.5 48.9
ID
(ICD for 80440)		 1242
mm ID		 70 31.8 250 17.2 61,028
in3		 PSA
80535-1 62,545 1024.9 49.25 DIA x49.99 Long 1250.95 mm DIA x 1269.7 mm Long 77.5 35.2 251 17.3 Himawari
80501-1 62,545 1025.4 49.1
x 50.5 L
(ICD for
80501)		 1247
mm		 78.0 35.4 235 16 77,805
in3		 TEMPO
80503-1 64,515 1057.22 35.5 ID x 80.5 Long 901.7 x 2044.7 mm 93.2 42.28 300 20.68 64,321
in3		 AEHF Derivative of 80395
80395-1 64,515 1057.7 35.5
ID x 80.5 Long
(ICD
for 80395)		 902
mm ID x 2045 mm long		 93.2 42.3 300 20.7 61,289
in3		 A2100
Fuel Family
80570-4 66,882 1095.99 46.321
OD @ tab ring
x modular tank lengths
(ICD
for 80570)		 1177
mm OD @ tab ring x modular tank lengths		 103.18 46.8 300 20.68 SP
2016_3124654
80507-4 70,083 1148.9 45.6
ID x 55 long
(ICD
for 80507)		 1158
mm ID x 1397 mm long		 91.53 41.52 260 17.9 70,083
in3		 Commercial Ox
80507
Qualified Environments
SP 2016_3124654
80602-1 70,335 1,153 48.9
ID x 54 Long		 1242 mm DIA x 1371.6 mm Long 82.7 37.51 250 17
80404-5 73,000 1,196 52 ID Sphere 1321.9
mm		 150 10.34 ICM
80507-5 76,525 1254.5 45.6
ID x 59 long
(ICD
for 80507)		 1158
mm ID x 1499 mm long		 96.60 43.82 260 17.9 76,525
in3		 Commercial Ox
80507
Qualified Environments
SP 2016_3124654
80363-11 77,800 1275.4 48.9
ID x 59.66 Long
(ICD
for 80363)		 1242
mm ID x 1515 mm long		 93.5 42.4 250 17.2 77,800
in3		 INTELSAT
VIIA		 C,
L
80367-1 77,800 1275.4 48.9
ID x 59.66 Long
(ICD
for 80367)		 1242
mm ID x 1515 mm long		 93.5 42.4 250 17.2 77,800
in3		 INTELSAT
VIIA		 C,
L
80403-101 77,805 1275.4 48.9
ID x 57.8 Long
(ICD
for 80403)		 1242
mm ID x 1468 mm long		 87.61 39.7 250 17.2 77,805
in3		 EXTENDED
TEMPO
80422-1 77,805 1275.4 48.9
ID x 57.8 Long
(ICD
for 80422)		 1242
mm ID x 1468 mm long		 87.61 39.7 250 17.2 77,805
in3		 EXTENDED
TEMPO
80441-1 77,805 1275.5 48.9
ID x 57.8 Long
(ICD
for 80441)		 1242
mm ID x 1468 mm long		 91.0 41.3 250 17.2 77,805
in3		 EXTENDED
TEMPO
80443-1 86,050 1410.7 35.5
ID x 100.6 Long
(ICD
for 80443) 		901
mm ID x 2553 mm long		 110.9 50.3 285 19.7 81,748
in3 (95% FF)		 A2100
Fuel Family
80411-1 87,575 1435.7 48.9
ID x 63.34 Long
(ICD
for 80411)		 1242
mm ID x 1609 mm long		 99.2 45 250 17.2 87,575
in3		 ETS-8
80442-1 87,575 1435.7 48.9
ID x 63.34 Long
(ICD
for 80442)		 1242
mm ID x 1609 mm long		 100.5 45.6 250 17.2 87,575
in3		 EXTENDED
TEMPO
80456-1 87,575 1435.7 48.9
ID x 63.34 Long
(ICD
for 80456)		 1242
mm ID x 1609 mm long		 100.5 45.6 250 17.2 87,575
in3		 MRO
80482-1 87,575 1435.7 48.9
ID x 63.34 Long
(ICD
for 80482)		 1242
mm ID x 1609 mm long		 99.20 45 250 17.2 87,575
in3		 DS2000
80528-1 92,247 1511.68 35.26 ID x 108.87
boss-to-boss
(ICD
for 80528)		 896 mm ID x 2765 mm boss-to-boss 122 55.34 300 20.7 GPS Fuel
80391-1 92,247 1512.3 35.5
ID x 108.87 boss-to-boss
(ICD
for 80391)		 896
mm ID x 2765 mm boss-to-boss		 122 55.3 300 20.7 87,634
in3		 A2100
Fuel Family		 80391
Qualified Environments
80570-3 92,409 1514.31 46.321
OD @ tab ring
x modular tank lengths
(ICD
for 80570)		 1177
mm OD @ tab ring x modular tank lengths		 129.63 58.80 300 20.68 GEO
Commercial		 SP
2016_3124654
80560-1 103,555 1697 35.26 ID x 120.87
boss-to-boss
(ICD
for 80560)		 96 mm ID x 3070 mm boss-to-boss 141.7 64.27 300 20.7 GOES Fuel
80601-1 104,344 1,709.91 48.9 1242.06 114.9 52.12 235 16.2 DS2000
80517-1 104,344 1710.6 48.9″
ID X 72.3″ Long
(ICD
for 80517)		 1242
mm ID x 1836 mm long		 130 59 250 17.2 xxx,xxx
in3		 LS1300 80517
Qualified Environments
80554-1 107,000 1754 49.25 OD x 75.85
long
(ICD
for 80554)		 1251 mm interface OD x 1927 mm long 135 61.2 250 17.2 MAVEN
80570-2 111,596 1828.73 46.321
OD @ tab ring
x modular tank lengths
(ICD
for 80570)		 1177
mm OD @ tab ring x modular tank lengths		 149.69 67.90 300 20.68 GEO
Commercial		 SP
2016_3124654
80434-1 117,154 1920.6 35.6″
OD X 133.9″ Long
(ICD
for 80434)		 904
mm OD x 3401 mm long		 208 94.3 300 20.7 117,154
in3		 ASTROLINK fuel
80471-1 117,154 1920.6 35.6″
OD X 133.9″ Long
(ICD for 80471)		 904
mm OD x 3401 mm long		 208 94.3 300 20.7 113,639
in3		 SBIRS
80576-1 131,282 2151 45.6
x 93 long boss-to-boss
(ICD for 80576)		 1158
mm x 2362 mm long boss-to-boss		 133.7 60.6 260 17.9 –
in3		 GEO
Commercial		 SP
2016_3124654
80570-1 133,872 2194 46.321
OD @ tab ring
x modular tank lengths
(ICD
for 80570)		 1177
mm OD @ tab ring x modular tank lengths		 173.28 78.60 300 20.68 GEO
Commercial		 SP
2016_3124654
80576-2 140,945 2310 45.6
x 99 long boss-to-boss
(ICD for 80576)		 1158
mm x 2515 mm long boss-to-boss		 140.8 63.9 260 17.9 –
in3		 Commercial SP
2016_3124654
NOTES

C. Customer proprietary surface tension device
G. Between 10 & 99.5% total volume
L. 80363-11 hast Titanium screens. 80367-11 has stainless steel screens
M. Spinner Tank
N. Proton launch compatible

PMD Tanks Data Sheets – Sorted by Part Number

OA’s P/N Total Volume (in³) Total Volume (l) Diameter (in) Diameter (mm) Weight (lbm) Weight (kg) Operating Pressure (psig) Operating Pressure (bar) Propellant Volume / Capacity (lbm or in3) Propellant Volume / Capacity (l) Program Note
80213-1 1,232 20.2 13.33
ID
(ICD
for 80213)		 339
mm ID		 4.00 1.8 310 21.4 — — CLASSIFIED C
80213
Qualified Environments
80277-1 18,450 302.5 32.84
ID
(ICD
for 80277)		 834
mm ID		 32.60 14.8 250 17.2 894
lbm NTO		 405.5
kg		 INSAT C
80277
Qualified Environments
80296-1 3,575 58.6 19.03
ID
(ICD
for 80296)		 483
mm ID		 8.00 3.63 425 29.3 — — RCA
Sat COM		 80296
Qualified Environments
80301-1 20,900 342.6 34.25
ID
(ICD
for 80301)		 870
mm ID		 34.00 15.4 255 17.6 1,129
lbm		 512.1
kg		 ARABSAT C
80301
Qualified Environments
80304-1 3,575 58.6 19.03
ID
(ICD
for 80304)		 483
mm ID		 7.75 3.5 400 27.6 2,349
in3		 38.5
liters		 SPACENET C
80309-1 9,210 151 22.14 ID
x 32 Long
(ICD
for 80309)		 562
mm ID x 813 mm long		 17.80 8.1 318 21.9 Note G Note
G		 CLASSIFIED C, G
80310-5 13,743 225.3 23 ID x
40 Long
(ICD
for 80310)		 584
mm ID x 1016 mm long		 33.95 15.4 255 17.6 682
lbm		 309.4
kg		 EUROSTAR C
80317-105 23,400 383.6 27.68 ID
x 48 Long
(ICD
for 80317)		 703
mm ID x 1219 mm long		 60.00 27.2 350 24.1 VARIABLE VARIABLE CLASSIFIED C
80317
Qualified Environments
80324-1 18,390 301.5 32.84
ID
(ICD
for 80324)		 834
mm ID		 44.50 20.2 400 27.6 587
lbm		 266
kg		 MILSTAR C
80324
Qualified Environments
80334-1 10,679 175.1 23.862
in OD x 33.312 in shoulder-to-shoulder
(ICD
for 80334)		 606
mm OD x 846 mm shoulder-to-shoulder		 28.41 12.9 255 17.6 9,274
in3		 152
liters		 INMARSAT
2		 C
80334
Qualified Environments
80338-1 34,500 565.6 40.44
ID
(ICD
for 80338)		 1027
mm ID		 56.00 25.4 250 17.2 1,710
lbm		 775.7
kg		 GOES C
80338
Qualified Environments
80339-1 15,598 255.7 31.06
ID
(ICD
for 80339)		 789
mm ID		 30.10 13.7 300 20.7 549
lbm		 249
kg		 S-5000 C
80339
Qualified Environments
80340-1 30,728 503.8 38.97
ID
(ICD
for 80340)		 990
mm ID		 37.75 17.1 276 19 1,495
lbm		 678.1
kg		 S-5000 C
80340
Qualified Environments
80348-1 11,350 186.1 28
ID
(ICD for 80348)		 711
mm ID		 43.0 19.5 435 30 10,215
in3		 167
liters
80350-1 22,450 368 35.1
ID
(ICD
for 80350)		 892
mm ID		 28.90 13.1 260 17.9 22,450
in3		 3679
liters		 HS – 601 80350
Qualified Environments
80352-1 39,440 646.6 42
ID
(ICD
for 80352)		 1067
mm ID		 51.50 23.4 300 20.7 39,230
in3		 642.9
liters		 MO,
TELSTAR,
S7000		 C
80352
Qualified Environments80352
Protoflight Environments
80353-1 3,575 58.6 19.03
ID
(ICD
for 80353)		 483
mm ID		 8.50 3.9 400 27.6 3,575
in3		 58.6
liters		 MARS
OBSERVER		 C
80353
Protoflight Environments
80356-1 26,750 438.5 28 ID x
48.5 Long
(ICD
for 80356)		 711
mm ID x 1232 mm long		 60.00 27.2 325 22.4 26,700
in3		 437.5
liters		 CLASSIFIED 80356
Qualified Environments
80363-11 77,800 1275.4 48.9 ID x
59.66 Long
(ICD
for 80363)		 1242
mm ID x 1515 mm long		 93.50 42.4 250 17.2 77,800
in3		 1274.9
liters		 INTELSAT
VIIA		 C, L
80363
Qualified Environments80363
Protoflight Environments
80364-1 5,580 91.5 22.14
ID
(ICD
for 80364)		 562
mm ID		 12.50 5.7 400 27.6 150
lbm		 68
kg		 INMARSAT
3		 80364
Protoflight Environments
80366-1 61,028 1000.5 48.9
ID
(ICD
for 80366)		 1242
mm ID		 73.20 33.2 250 17.2 61,028
in3		 1000
liters		 N-STAR C
80366
Qualified Environments80366
Protoflight Environments
80367-1 77,800 1275.4 48.9 ID x
59.66 Long
(ICD
for 80367)		 1242
mm ID x 1515 mm long		 93.50 42.4 250 17.2 77,800
in3		 1274.9
liters		 INTELSAT
VIIA		 C, L
80367
Qualified Environments80367
Protoflight Environments
80373-1 20,580 337.4 34
ID
(ICD
for 80373)		 864
mm ID		 30.50 13.8 300 20.7 20,579
in3		 337.2
liters		 S7000 C
80373
Qualified Environments80373
Protoflight Environments
80375-1 9,850 161.5 24.6 ID x
29 Long
(ICD
for 80375)		 625
mm ID x 737 mm long		 19.00 8.6 420 29 253
lbm		 114.8
kg		 IRIDIUM 80375
Qualified Environments
80379-1 3,660 60 19.06
ID
(ICD
for 80379)		 484
mm ID		 10.70 4.9 377 26 3,660
in3		 60 liters NEAR M
80380-1 61,028 1000.5 48.9
ID
(ICD
for 80380) 		1242
mm ID		 70.00 31.8 250 17.2 61,028
in3		 1000
liters		 TEMPO 80380
Qualified Environments
80387-1 7,700 126.2 22.14 ID
x 29.47 Long
(ICD
for 80387)		 562
mm ID x 749 mm long		 20.00 9.1 400 27.6 220
lbm		 99.8
kg		 CLASSIFIED C
80387
Qualified Environments
80390-1 19,984 327.5 21.25 ID x
65 Long
(ICD for 80391)		 540
mm ID x 1652 mm long		 33.50 15.2 300 20.7 A2100
Ox Family		 80390
Qualified Environments
80391-1 92,247 1512.3 35.26
ID x 108.87 boss-to-boss
(ICD for 80391)		 896
mm ID x 2765 mm boss-to-boss		 122.00 55.3 300 20.7 87,634
in3		 1436.1
liters		 A2100
Fuel Family		 80391
Qualified Environments
80394-1 13,979 229 21.25 ID x
47.8 Long
(ICD
for 80394)		 540
mm ID x 1214 mm long		 25.7 11.7 300 20.7 13,979
in3		 229.1
liters		 A2100
Ox Family		 80394
Qualified Environments
80395-1 64,515 1057.7 35.5 ID x
80.5 Long
(ICD
for 80395)		 902
mm ID x 2045 mm long		 93.20 42.3 300 20.7 61,289
in3		 1004.3
liters		 A2100
Fuel Family		 80395
Qualified Environments
80396-1 3,776 61.9 19.32
ID
(ICD
for 80396)		 488
mm ID		 11.50 5.2 600 41.4 VARIABLE VARIABLE LUNAR
PROSPECTOR
80398-1 26,750 438.5 28.5 ID x
54.99 Long
(ICD for 80398)		 597
mm ID x 1394 mm long		 50.00 22.7 350 24.1 26,750
in3		 438.4
liters		 SPS-95,
SPS-200		 80398
Qualified Environments
80399-1 32,610 534.6 35.1 ID x
46.42 boss-to-boss
(ICD for 80399)		 892
mm ID x 1179 mm long		 41.00 18.6 260 17.9 1,160
lbm		 526.2
kg		 HS – 601
HP		 80399
Qualified Environments
80403-101 77,805 1275.5 48.9 ID x
57.8 Long
(ICD
for 80403)		 1242
mm ID x 1468 mm long		 87.61 39.7 250 17.2 77,805
in3		 1275
liters		 EXTENDED
TEMPO		 80403
Protoflight Environments
80404-5 73,000 1,196 52 ID Sphere 1321.9
mm		 150 10.34 ICM
80405-1 19,984 327.6 21.25 OD
x 65.03 Long
(ICD for 80405)		 540
mm OD x 1652 mm long		 33.50 15.2 300 20.7 19,984
in3		 327.5
liters		 A2100
Ox Family		 N, C
80406-1 13,979 229.2 21.25 OD
x 47.8 Long
(ICD for 80406)		 540
mm OD x 1214 mm long		 25.70 11.7 300 20.7 13,979
in3		 229.1
liters		 A2100
Ox Family		 N, C
80411-1 87,575 1435.7 48.9 ID x
63.34 Long
(ICD
for 80411)		 1242
mm ID x 1609 mm long		 99.20 45 250 17.2 87,575
in3		 1435.1
liters		 ETS-8 80411
Qualified Environments
80415-1 22,450 368 35.1
ID
(ICD
for 80415)		 892
mm ID		 28.90 13.1 260 17.9 22,450
in3		 367.9
liters		 HS – 601
80420-1 9,210 151 22.14 ID
x 32 Long
(ICD
for 80420)		 562
mm ID x 813 mm long		 17.80 8.1 318 21.9 Note G Note
G		 BSAT C, G
80420
Qualified Environments
80421-1 522 8.55 5.0
Diameter x 29 long
(ICD for 80421-1)		 126
mm diameter x 717 mm long		 4.25 1.93 400 27.6 522
in3		 8.6
liters		 SBD/TOMS 80421
Qualified Environments
80422-1 77,805 1275.5 48.9 ID x
57.8 Long
(ICD
for 80422)		 1242 mm ID x 1468 mm long 87.61 39.7 250 17.2 77,805
in3		 1275
liters		 EXTENDED
TEMPO		 80422
Protoflight Environments
80425-1 57,215 938 35.5
OD x 75″ Long
(ICD for 80425)		 902
mm OD x 1905 mm long		 67.73 30.7 300 20.7 1,980
lbm		 898.1
kg		 STAR-2 Fuel
80425
Qualified Environments
80425-101 57,215 938 35.5
OD x 75″ Long		 902
mm OD x 1905 mm long		 73 33.1 300 20.7 1,980
lbm		 898.1
kg		 STAR-2 Fuel
80426-1 9,712 159.2 21.25 OD
x 34.69
(ICD
for 80426)		 541
mm OD x 881 mm long		 20.00 9.1 315 21.7 492
lbm		 223.2
kg		 STAR 2 Ox
80426
Qualified Environments
80430-1 34,481 565.3 40.44
ID
(ICD
for 80430)		 1027
mm ID		 48.00 21.8 330 22.8 34,481
in3		 565
liters		 UNKNOWN 80430
Qualified Environments
80432-1 52,335 858 35.5
OD x 69.2 Long
(ICD for 80432)		 902
mm OD x 1758 mm long		 67.73 30.7 300 20.7 52,335
in3		 857.6
liters		 STAR-2 Fuel
80433-1 12,150 199.2 22.14
ID x 39.2 Long
(ICD for 80433)		 562
mm ID x 994 mm long		 20.00 9.1 325 22.4 95%
max. fill fraction		 95%
max. fill fraction		 MESSENGER Fuel
80433
Qualified Environments80433
Protoflight Environments
80434-1 117,154 1920.6 35.6″
OD X 133.9″ Long
(ICD for 80434)		 904
mm OD x 3401 mm long		 208.00 94.3 300 20.7 117,154
in3		 1919.8
liters		 ASTROLINK Fuel
80435-1 26,345 431.9 21.3″
OD X 83.2″ Long
(ICD
for 80435)		 541
mm OD x 2080 mm long		 64.70 29.3 300 20.7 26,345
in3		 431.7
liters		 ASTROLINK Ox
80435
Qualified Environments
80440-1 61,028 1000.5 48.9
ID 		1242
mm ID		 70.00 31.8 250 17.2 61,028
in3		 1000
liters		 PSA
80441-1 77,805 1275.5 48.9
ID x 57.8 Long
(ICD
for 80441)		 1242
mm ID x 1468 mm long		 91.00 41.3 250 17.2 77,805
in3		 1275
liters		 EXTENDED
TEMPO		 80441
Protoflight Environments
80442-1 87,575 1435.7 48.9
ID x 63.34 Long
(ICD
for 80442)		 1242
mm ID x 1609 mm long		 100.50 45.6 250 17.2 87,575
in3		 1435.1
liters		 EXTENDED
TEMPO		 80442
Protoflight Environments
80443-1 86,050 1410.7 35.5
ID x 100.6 Long
(ICD
for 80443)		 901
mm ID x 2553 mm long		 110.90 50.3 285 19.7 81,748
in3 (95% FF)		 1339.6
liters (95% FF)		 A2100
Fuel Family
80454-1 2,280 37.4 16.5
ID
(ICD for 80454)		 419
mm ID		 11.4 5.2 300 20.7 1,520
in3		 24.9
liters		 Orbital
Express		 Fuel
80456-1 87,575 1435.7 48.9
ID x 63.3 Long
(ICD
for 80456)		 1242
mm ID x 1609 mm long		 100.50 45.6 250 17.2 87,575
in3		 1435.1
liters		 MRO Fuel
and Ox
80462-1 9,850 161.5 24.6 ID x
29 Long
(ICD
for 80462)		 625
mm ID x 736 mm long		 22.0 10 420 29 9,850
in3		 161.4
liters		 NFIRE Fuel
80462
Protoflight Environments
80466-1 34,481 565.3 40.44
ID
(ICD
for 80466)		 1030
mm ID		 48.00 21.8 330 22.8 34,481
in3		 565
liters		 GLAST Fuel
80466
Protoflight Environments
80470-1 45,161 740.4 40.5
ID x 48.8 Long
(ICD for 80470)		 1029
mm ID x 1240 mm long		 60.00 27.2 340 23.4 45,161
in3		 740.1
liters		 UNKNOWN 80470
Qualified Environments
80471-1 117,154 1920.6 35.6
ID x 133.9 Long		 904
mm ID x 3401 mm long		 208.00 94.3 300 20.7 113,639
in3		 1862.2
liters		 SBIRS
80474-1 13,750 225.4 29.8 ID
(ICD
for 80474)		 757
mm ID		 18.60 8.4 250 17.2 98%
Fill Fraction		 98%
Fill Fraction		 UNKNOWN 80474
Qualified Environments
80476-1 52,335 858 35.5
ID x 70.23 flex plate-to-flex plate (ICD
for 80476)		 902
mm ID x 1784 mm long		 63.75 28.9 300 20.7 52,335
in3		 857.6
liters		 Optus
80480-1 3,575 58.6 19.03
ID
(ICD for 80480)		 483
mm ID		 7.90 3.6 300 20.7 2,349
in3		 38.5
liters		 CLASSIFIED 80480
Protoflight Qualification Environment)
80481-1 1,232 20.2 13.33
ID
(ICD
for 80481)		 339
mm ID		 4.00 1.8 300 20.7 CLASSIFIED (80481
Protoflight Qualification Environment)
80482-1 87,575 1435.7 48.9
ID x 63.35 Long
(ICD
for 80482)		 1242
mm ID x 1609 mm long		 99.20 45 250 17.2 87,575
in3		 1435.1
liters		 DS2000
80484-1 39,440 646.6 42 ID
(ICD
for 80484)		 1067
mm ID		 51.5 23.4 300 20.7 39,230
in3		 642.9
liters		 SDO 80484
Protoflight Environments
80491-1 13,937 228 21.5 DIA x 48 Long 546.1 mm DIA x 1219.1 mm Long 300 20.7 A2100 Extended Range
80495-1 28,475 466.63 42.11 OD x 83.98 Long 1069.59 mm x 2133.09 mm 260 117.94 315 21.718
80501-1 62,545 1025.4 49.1
x 50.5 L
(ICD
for 80501)		 1247
mm		 78.0 35.4 235 16 77,805
in3		 1275
liters		 TEMPO Spherical
version of the 49-inch family
80503-1 64,515 1057.22 35.5 ID x 80.5 Long 901.7 x 2044.7 mm 93.2 42.28 300 20.68 64,321
in3		 1054.05
liters		 AEHF Derivative of 80395
80504-1 19,984 327.48 21.25 ID x 65.03 Long 540 x 1652 mm 33.5 15.2 300 20.68 19,984
in3		 327.48
liters		 BSAT-3A Derivative of 80405
80506-1 16,920 277.4 27.25
ID x 22.14 long
(ICD for 80506)		 692
mm ID x 562 mm long		 36.10 16.4 256 17.7 Commercial Fuel
(80506
Qualified Environment)
80506-2 20,340 333.5 27.25
ID x 28.14 long
(ICD for 80506)		 692
mm ID x 715 mm long		 41.60 18.9 256 17.7 Commercial Fuel
(80506
Qualified Environment)
80506-3 23,760 389.5 27.25
ID x 34.14 long
(ICD for 80506)		 692
mm ID x 867 mm long		 46.40 21 256 17.7 Commercial Fuel
(80506
Qualified Environment)
80506-4 27,180 445.6 27.25
ID x 40.14 long
(ICD for 80506)		 692
mm ID x 1020 mm long		 49.45 22.4 256 17.7 Commercial Fuel
(80506
Qualified Environment)
80506-5 30,600 501.7 27.25
ID x 46.144 long
(ICD for 80506)		 692
mm ID x 1172 mm long		 53.35 24.2 256 17.7 Commercial Fuel
(80506
Qualified Environment)
80506-6 33,450 548.4 27.25
ID x 51.14 long
(ICD for 80506)		 692
mm ID x 1299 mm long		 56.40 25.6 256 17.7 Commercial Fuel
(80506
Qualified Environment)
80506-7 36,300 595.1 27.25
ID x 56.14 long
(ICD for 80506)		 692
mm ID x 1426 mm long		 59.45 27 256 17.7 Commercial Fuel
(80506
Qualified Environment)
80507-1 41,093 673.7 45.60
(ICD for 80507)		 1158
mm ID		 66.82 30.31 260 17.9 41,093
in3		 673.4
liters		 Commercial Ox
(80507
Qualified Environment)
SP 2016_3124654
80507-2 50,756 832.1 45.6
ID x 43 long
(ICD for 80507)		 1158
mm ID x 1092 mm long		 76.75 34.81 260 17.9 50,756
in3		 831.7
liters		 Commercial Ox
(80507
Qualified Environment)
SP 2016_3124654
80507-3 60,420 990.5 45.6
ID x 49 long
(ICD for 80507)		 1158
mm ID x 1245 mm long		 83.92 38.07 260 17.9 60,420
in3		 990.1
liters		 Commercial Ox
(80507
Qualified Environment)
SP 2016_3124654
80507-4 70,083 1148.9 45.6
ID x 55 long
(ICD for 80507)		 1158
mm ID x 1397 mm long		 91.53 41.52 260 17.9 70,083
in3		 1148.5
liters		 Commercial Ox
(80507
Qualified Environment)
SP 2016_3124654
80507-5 76,525 1254.5 45.6
ID x 59 long
(ICD for 80507)		 1158
mm ID x 1499 mm long		 96.60 43.82 260 17.9 76,525
in3		 1254
liters		 Commercial Ox
(80507
Qualified Environment)
SP 2016_3124654
80511-1 19,992 327.7 40.7
ID ellipsoid
(ICD for
80511)		 1030
mm ID		 55.0 24.9 330 22.8 qualified
to 552 lbm of hydrazine		 qualified
to 250.4 kg of hydrazine		 Proprietary Hydrazine,
80511
Qualified Environments
80517-1 104,344 1710.6 48.9
ID x 72.3 long
(ICD for 80517)		 1242
mm ID x 1836 mm long		 130.0 59 250 17.2 Commercial Fuel
and Ox
80517
Qualified Environments
80518-1 52,335 858 35.5
OD x 69.2 Long
(ICD
for 80518)		 902
mm OD x 1758 mm long		 67.73 30.7 300 20.7 52,335
in3		 857.6
liters		 STAR-2 Fuel
80519-1 — — — — — — — — — — NPOESS NPOESS
was cancelled by the government
80520-1 76,525 1254.5 45.95 ID x 59.15
long
(ICD
for 80520)		 1158 mm ID x 1524 mm long 139.0 59 338 23.3 qualified
to 54,353
in3		 qualified
to 890.7 liters		 Proprietary All-metal
version of 80507.
80520
Qualified Environments
80520
Qualified Environments, Part 2
SP 2016_3124654
80521-1 — — — — — — — — — — Orion
CEV NTO		 Program
cancelled
80521-3 — — — — — — — — — — Orion
CEV NTO		 Program
cancelled
80522-1 — — — — — — — — — — Orion
CEV MMH		 Program
cancelled
80522-3 — — — — — — — — — — Orion
CEV MMH		 Program
cancelled
80527-1 22,850 374.6 29.5 ID x 43.7
Long
(ICD
for 80527)		 749 mm ID x 1110 mm long 62.0 28.1 315 21.7 qualified
to 15,835 in3		 qualified
to 259.5 liters		 COTS/CRS Hydrazine
80527
Qualified Environments
80528-1 92,247 1511.68 35.26 ID x 108.87
boss-to-boss
(ICD
for 80528)		 896 mm ID x 2765 mm boss-to-boss 122 55.34 300 20.7 GPS Fuel
80529-1 19,984 327.48 21.25 ID x
65.03 flex plate-to-flex plate
(ICD
for 80529)		 540 mm ID x 1652 mm flex plate-to-flex
plate		 33.50 15.20 300 20.7 GPS Ox
80532-1 57,215 937.6 (ICD
for 80532)		 43.3 19.7 JUNO Fuel
80533-1 JUNO Ox
80535-1 62,545 1024.9 49.25 DIA x49.99 Long 1250.95 mm DIA x 1269.7 mm Long 77.5 35.2 251 17.3 Himawari
80540-1 1,892 31 15.38 ID
(ICD
for 80540)		 391 mm ID 5.4 2.45 250 17.2 1,835
in3		 30.1
liters		 LADEE 80540
Qualified Environments
80545-1 15685 257 26.63 OD x 40.737 Long
(ICD
for 80545)		 676 mm OD x 1035 mm long 36.4 16.5 350 24 392
lbm N2H4		 177.8
kg N2H4		 JWST Fuel
80546-1 7996 131 26.63 OD x 29.058 Long
(ICD for 80546)		 676 mm OD x 738 mm long 24.2 11 350 24 291
lbm N2O4		 132
kg N2O4		 JWST Ox
(this is a shorter version of the Fuel Tank)
80554-1 107,000 1754 49.25 OD x 75.85
long
(ICD
for 80554)		 1251 mm interface OD x 1927 mm long 135 61.2 250 17.2 MAVEN
80560-1 103,555 1697 35.26 ID x 120.87
boss-to-boss
(ICD
for 80560)		 96 mm ID x 3070 mm boss-to-boss 141.7 64.27 300 20.7 GOES Fuel
80561-1 19,000 311 21.25 ID x
65.03 flex plate-to-flex plate
(ICD
for 80561)		 540 mm ID x 1652 mm flex plate-to-flex
plate		 35 15.88 300 20.7 GOES Ox
80563-1 101,951 1671.4 50.55 OD x 65.02
boss-to-boss
(ICD for 80563)		 1284 mm OD x 1652 mm boss-to-boss 141.5 64.2 300 20.7 3620
lbm		 1642
kg		 ComSat Fuel
Tank
80564-1 43,576 714.4 50.55 OD x 37.7
boss-to-boss
(ICD
for 80564)		 1284 mm OD x 958 mm boss-to-boss 91.0 41.3 300 20.7 2218.5 lbm 1006
kg		 ComSat Ox
Tank
80568-1 232 3.8 5
OD x 13.9 boss-to-boss
(ICD for 80568)		 127 mm OD x 353 mm boss-to-boss 3 1.36 348 24 Unknown LMP-103
HPGP
80570-1 133872 2194 46.321 OD @ tab
ring
x modular tank lengths
(ICD for 80570)		 1177 mm OD @ tab ring x modular tank
lengths		 173.28 78.60 300 20.68 GEO
Commercial		 Proprietary

SP 2016_3124654
80570-2 111596 1828.73 46.321 OD @ tab
ring
x modular tank lengths
(ICD for 80570)		 1177 mm OD @ tab ring x modular tank
lengths		 149.69 67.90 300 20.68 GEO
Commercial		 Proprietary

SP 2016_3124654
80570-3 92409 1514.31 46.321 OD @ tab
ring
x modular tank lengths
(ICD for 80570)		 1177 mm OD @ tab ring x modular tank
lengths		 129.63 58.80 300 20.68 GEO
Commercial		 Proprietary

SP 2016_3124654
80570-4 66882 1095.99 46.321 OD @ tab
ring
x modular tank lengths
(ICD for 80570)		 1177 mm OD @ tab ring x modular tank
lengths		 103.18 46.80 300 20.68 GEO
Commercial		 Proprietary

SP 2016_3124654
80570-5 41163 674.54 46.321 OD @ tab
ring
x modular tank lengths
(ICD for 80570)		 1177 mm OD @ tab ring x modular tank
lengths		 74.96 34.00 300 20.68 GEO
Commercial		 Proprietary

SP 2016_3124654
80571-1 55,662 912 46.321 OD
(ICD for 80571)		 1177 mm OD @ tab ring x modular tank
lengths		 80.47 36.5 285 19.65 Proprietary
80576-1 131,282 2151 45.6 x 93 long
(ICD for 80576)		 1158 mm x 2362 mm long boss-to-boss 133.7 60.6 260 17.9 — — GEO
Commercial		 Stretched
version of 80507SP 2016_3124654
80576-2 140,945 2310 45.6 x 99 long
(ICD for 80576)		 1158 mm x 2515 mm long boss-to-boss 140.8 63.9 260 17.9 — — GEO
Commercial		 Stretched
version of 80507SP 2016_3124654
80577-1 26,750 438.4 28.55 DIA x54.915 long 725.17 mm DIA x1394.841 mm long 50 22.7 340 23.4 Upgrade
of 80398
80589-1 22,850 374.4 29.83 DIA x 43.713 long 757.7 mm DIA x1110.3 mm long 62 28.1 315 21.7
80599-1 5,774 94.6 22.2 ID 564
ID		 14.6 6.6 320 22 Lunar
Lander		 Derivative
of 80387 shell
80601-1 104,344 1,709.91 48.9 1242.06 114.9 52.12 235 16.2 DS2000
80602-1 70,335 1,153 48.9
ID x 54 Long		 1242 mm DIA x 1371.6 mm Long 82.7 37.51 250 17
80612-1 16,830 275.80 21.25″ ID X 56.43″ Long 540 x 1433mm 37.50 lbs 17.01 kg 300 20.68 16,476 in3 270.00 liter

NOTES

C. Customer proprietary surface tension device
G. Between 10 & 99.5% total volume
L. 80363-11 hast Titanium screens. 80367-11 has stainless steel screens
M. Spinner Tank
N. Proton launch compatible
