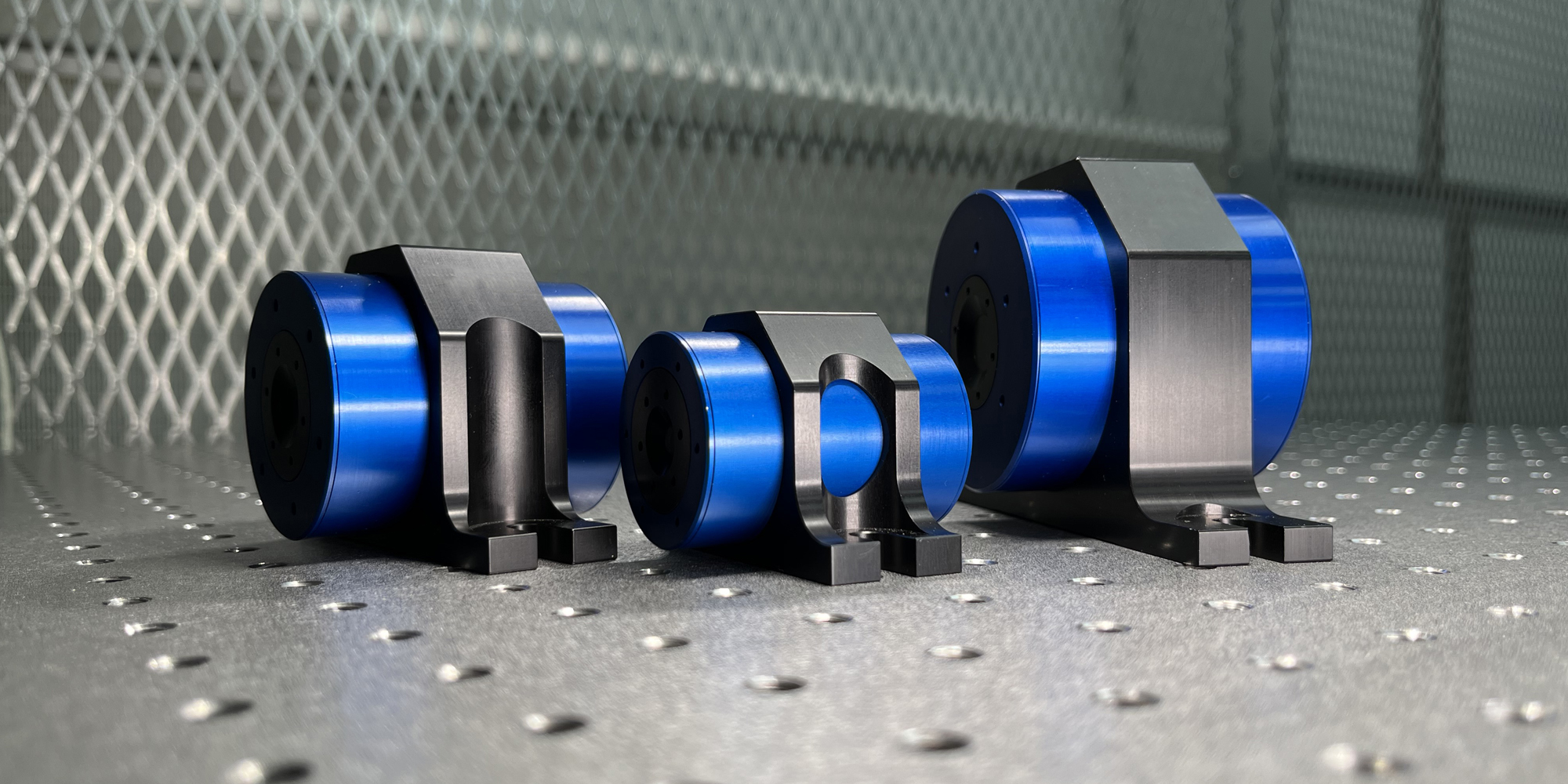

Faraday Rotator Devices

Our Faraday Rotator are manufactured with customized materials and coatings tailored for each application. While standard sizing ranges from 5mm, 8 mm, and 12mm, other sizes are available upon request.
Contact an expert

Key Features

Product Specifications

TGG KTF
Transparency range 400 - 1500nm
Transmission @ 1064nm >95%
Extinction >36dB Nominal
>30dB Minimum
Rotation Angle (degrees) 45 +/- 1
Damage Threshold (1um region) 10J/cm2 @ 10ns
500kW/cm2
Absorption @ 1064nm ~0.16%/cm ~0.02%/cm
Thermo-optic coefficient (dn/dT) 17.910-6/K -9.7x10-6/K

For specific mechanical dimensions of the Faraday Rotator devices or more information on our opto-mechanical assembly capabilities, contact our team of dedicated experts.
